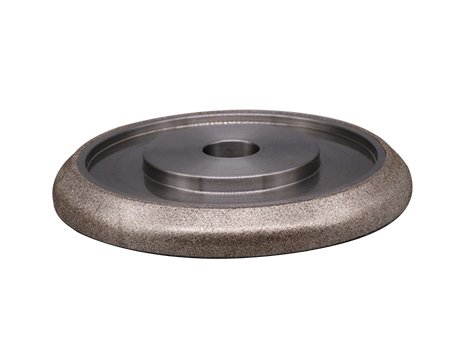

Electroplated CBN sharpening grinding wheels for wood band saw teeth sharpening.
Electroplated CBN sharpening grinding wheels for wood band saw teeth sharpening.
Why do we need the CBN sharpening grinding wheels?
The wood band saw mill plays a very important role during the wood cutting process. If the wood band saw teeth much more sharp, the band saw mill works much more efficient. If the band saw mill Worked for some time, its saw blade will become blunt. We need to use wood band saw teeth sharpening machine to sharp the band saw teeth. Usually the band saw manufacturer is: wood-mizer, Lenox, Ro-ma and so on.As we all know that the band saw blade has certain angle, the front angle and the back angle are Different for different wood.
Using a Wood Band Saw Sharpening Grinding Wheels can sharpen the band saw blade again, allowing for better cutting of different woods
Why Different angles?
4/32 - wheel profile which can prepare band saws for very frozen and very hard wood cutting
7/34 the CBN wheels profile is recommended for hardwood
9/29 - perfectly prepares band saws for winter time cutting, or cutting hard Wood
10/30 - mostly used universal grinding wheel profile
13/29 - wheel profile which prepares band saws for soft wood cutting
The more smaller the front angle of the band saw teeth is , the more harder of the band saw. It can cut the more harder wood. To be contracy, the more bigger the front angle of the band saw teeth is, the more softer of the band saw, it can cut the more softer wood. Because of the design of the band saw blade angle, It can easily change its angle during the working periods. At this moment, we need to use wood band saw sharpening machine to sharp the wood band saw teeth to make it become original profile. We must make the grinding wheel profile same as band saw teeth to make sure the same profile band saw teeth. Mostly, we make the wood mizer 10/30 because it has a huge markets. The end users are most concerned about the working life of our grinding wheel and It’s precision. We can make u satisfaction after using them. You will know about it.
1.The body of our grinding wheel is processed uniformly with CNC lathe, and the tolerance of the outer arc can be controlled within 0.03MM
2.We choose the best quality CBN abrasive, which can make our grinding wheels working life much more longer
3.One grinding wheel can sharp the band saw blades more than 5,000 pieces
4.Wet grinding and dry grinding both available
5.We can make different profile grinding wheels according to different band saw teeth.
6.We make tolerance for every wheel before they leaving our factory, to make sure the precision of our grinding wheels.
7.Our grinding wheels can suitable for woodmizer BMS250, BMS 500 and other band saw sharpeners.
Electroplated CBN Grinding Wheels have a wide range of applications in the field of woodworking turning tools.
Metal bonded diamond grinding wheels with special shapes are usually customized according to specific processing needs to meet the processing requirements of complex workpieces.
Metal bond diamond grinding wheel is a cutting tool that uses diamond as the cutting material, which is widely used in the processing of hard and brittle materials such as glass, concrete, refractory materials, stone, ceramics, etc.
If you need our products please write down any questions, we will reply as soon as possible.
