What grinding wheels are used on glass bilateral machine？

When grinding glass with a Bilateral machine, the configuration of grinding wheels at each workstation is crucial for achieving efficient and precise edge grinding.

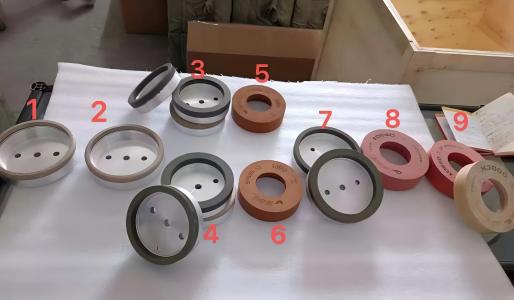

As shown in the above figure：

1. The first and second grinding wheels perform rough grinding on the glass to quickly remove burrs and uneven parts at the edges of the glass.

2. The configuration of the third and fourth grinding wheels is relatively flexible and can be selected according to processing needs. These grinding wheels are used to further refine and grind glass, improving the flatness of glass edges.

3.The fifth and sixth grinding wheels are usually used for preliminary polishing of glass, removing the film from the glass, and achieving a clean and bright effect on the glass.

4. The seventh grinding wheel is commonly used for further fine grinding of glass edges, chamfering the glass edges to make them smooth and flat.

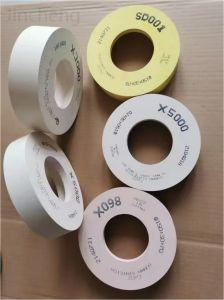

5. The eighth and ninth grinding wheels usually perform fine polishing on glass to achieve a smooth and bright surface effect.

This series of products are suitable for all brands of glass double edging machines. The combination of grinding wheels include rough grinding,dress grinding,fine grinding,chamfering,film removal polishing and safety chamfering. Jincheng grinding wheels can match with high-quality double edging machine, and the glass conveying speed can reach up to 30 m/min. The maximum grinding amount on one side can reach 10mm, and the maximum thickness of processed glass is 50mm (multi-layer laminated safety glass), which can meet the daily operating speed at 5-20 m/min in all glass deep processing factories.

These grinding wheels can not only be used on double-sided machines, but also on straight edge machines, beveling machine,, numerical control machine,such as Bavelloni, Bottero, Glassline, Schiatti, etc.If you are interested in the Jincheng series of products, please feel free to contact us!
