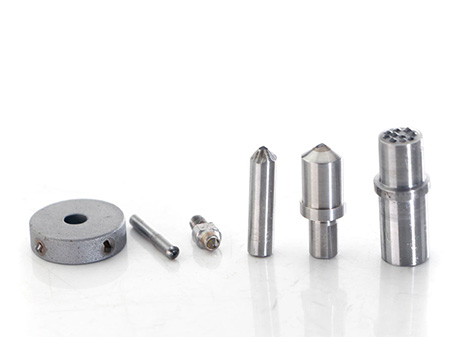

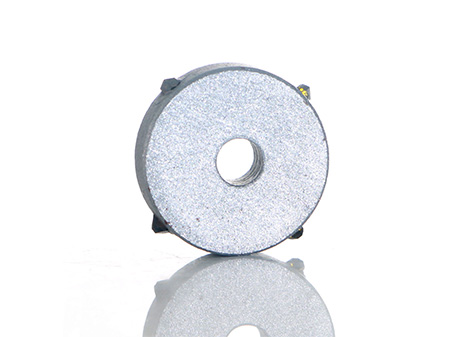

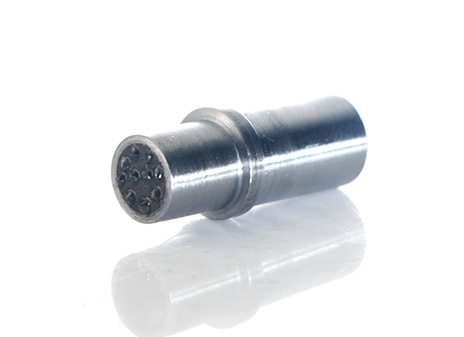

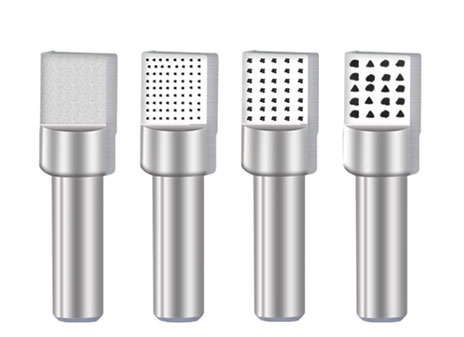

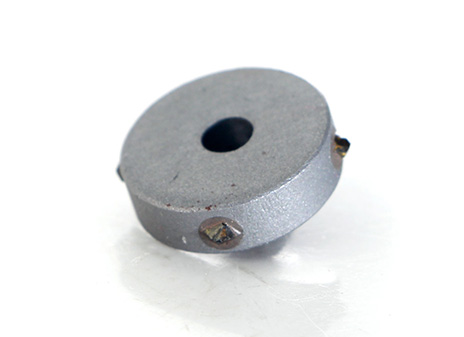

JINCHENG multi point diamond dressers are used for dressing the ceramic grinding wheels，Silicon Carbide grinding wheels, Corundum grinding wheel.
JINCHENG multi point diamond dressers are used for dressing the ceramic grinding wheels，Silicon Carbide grinding wheels, Corundum grinding wheel.

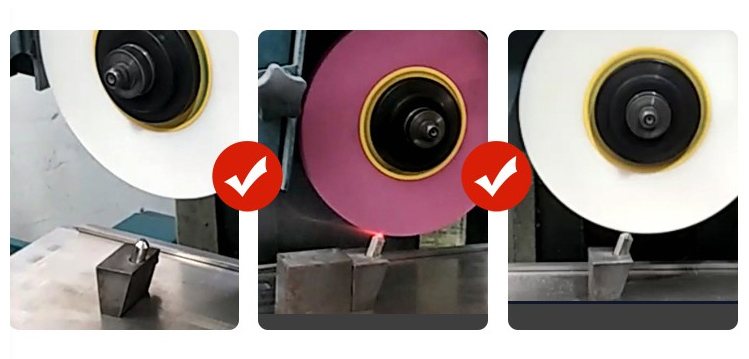

The diamond dresser surface grinder, Cylindrical grinder, Centerless grinder.
1.Seiko meticulously, grasps every detail
2.The diamond dressers are made of natural diamond, working life are Stable and durable
3. The diamond dressers shank are overall high temperature quenching,heat treatment.
4. The diamond dressers are convenient and easy to operate.
5. The diamond are fixed by low temperature,welding technology, not easy to fall off.
6. The nature diamond of the diamond dressers with low diamond wear rate, can be used for long time.
| Carat | Dressable grinding wheel outer diameter range | Dressable grinding wheel thickness range |
| 0.5 | 500mm | 20-80mm |
| 1 | 500-750mm | 20-150mm |
| 1.5 | 500-1100mm | 40-300mm |
| 2.5 | 100mm-1100mm | 5-300mm |

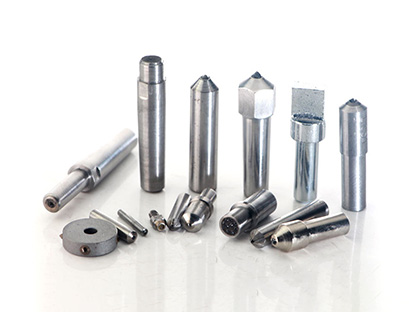

One Point Diamond Dresser is a high-precision tool used for dressing grinding wheels, grinding tools, or other grinding surfaces.
Electroplated CBN Diamond Grinding Pins is a precision internal grinding tool that combines electroplating technology, cubic boron nitride (CBN), and diamond characteristics.
Electroplated Diamond Cutting Discs are cutting tools that use electroplating technology to fix diamond particles onto a metal substrate.
If you need our products please write down any questions, we will reply as soon as possible.
