Half segmented diamond cup wheel is usually for 2nd position of glass edging machine,after rough grinding of full segmented diamond cup grinding wheel.
Some clients use internal half segmented and others use external half segmented according to the machine type and habits.JINCHENG can customize production for customers.
The internal half segmented diamond wheel and external half segmented diamond wheel is a specialized tool primarily used for glass processing, particularly in straight line and double edging machines.
These grinding wheels of JINCHENG ABRASIVES are suit for medium rough grinding of glass,diamond grain size usually 150# and 180# mesh.

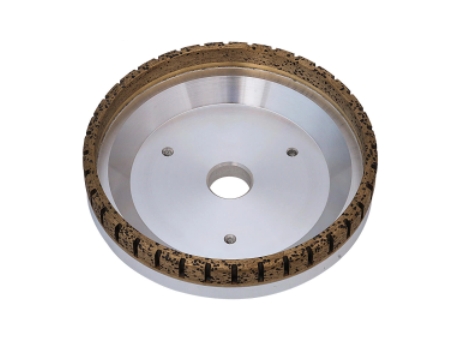

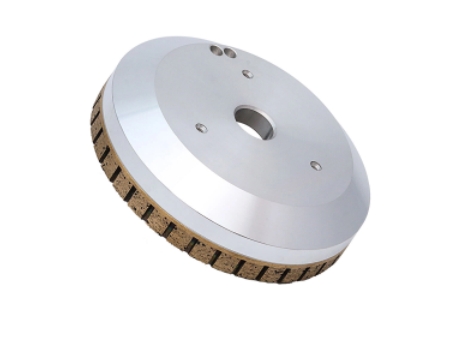

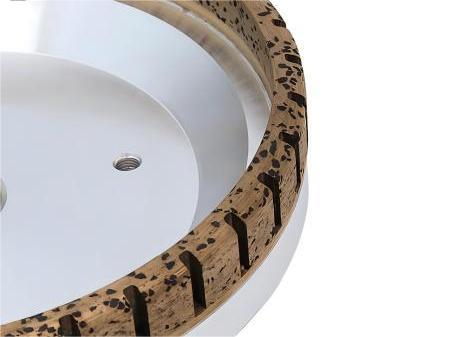

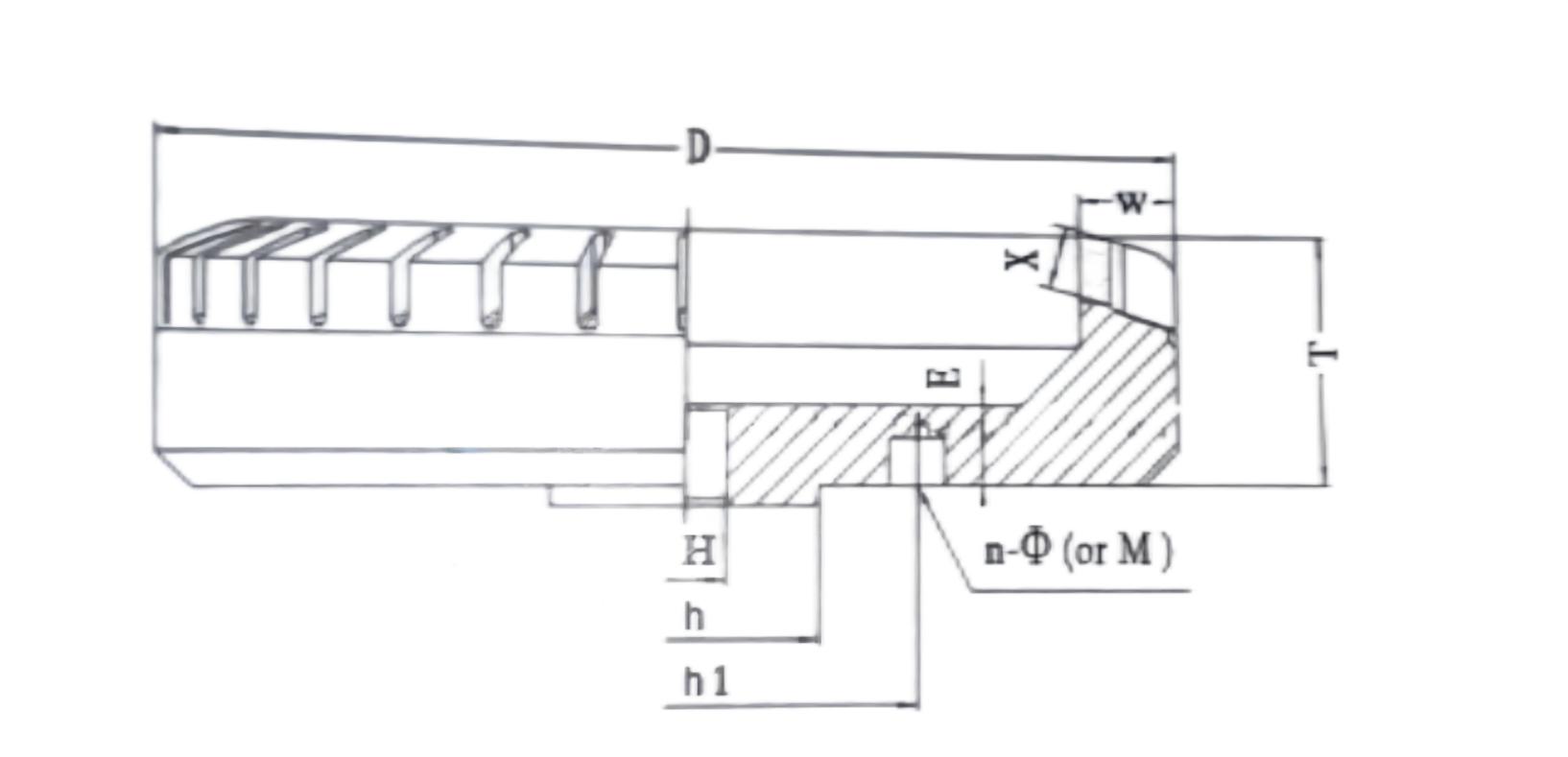

External segmented

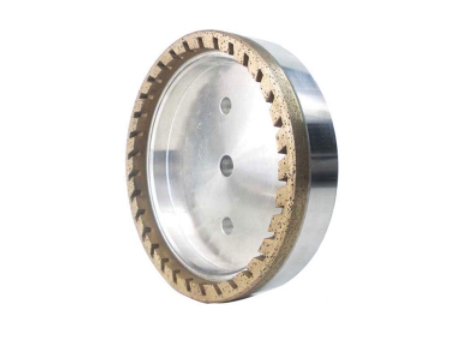

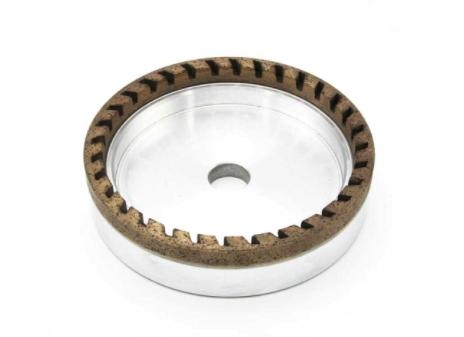

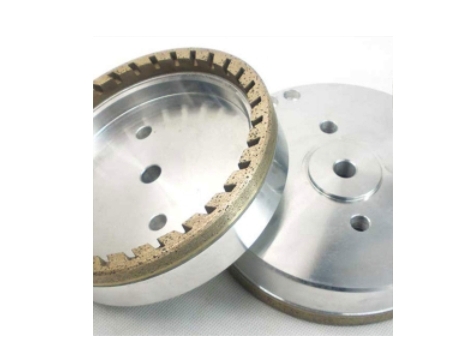

Internal segmented

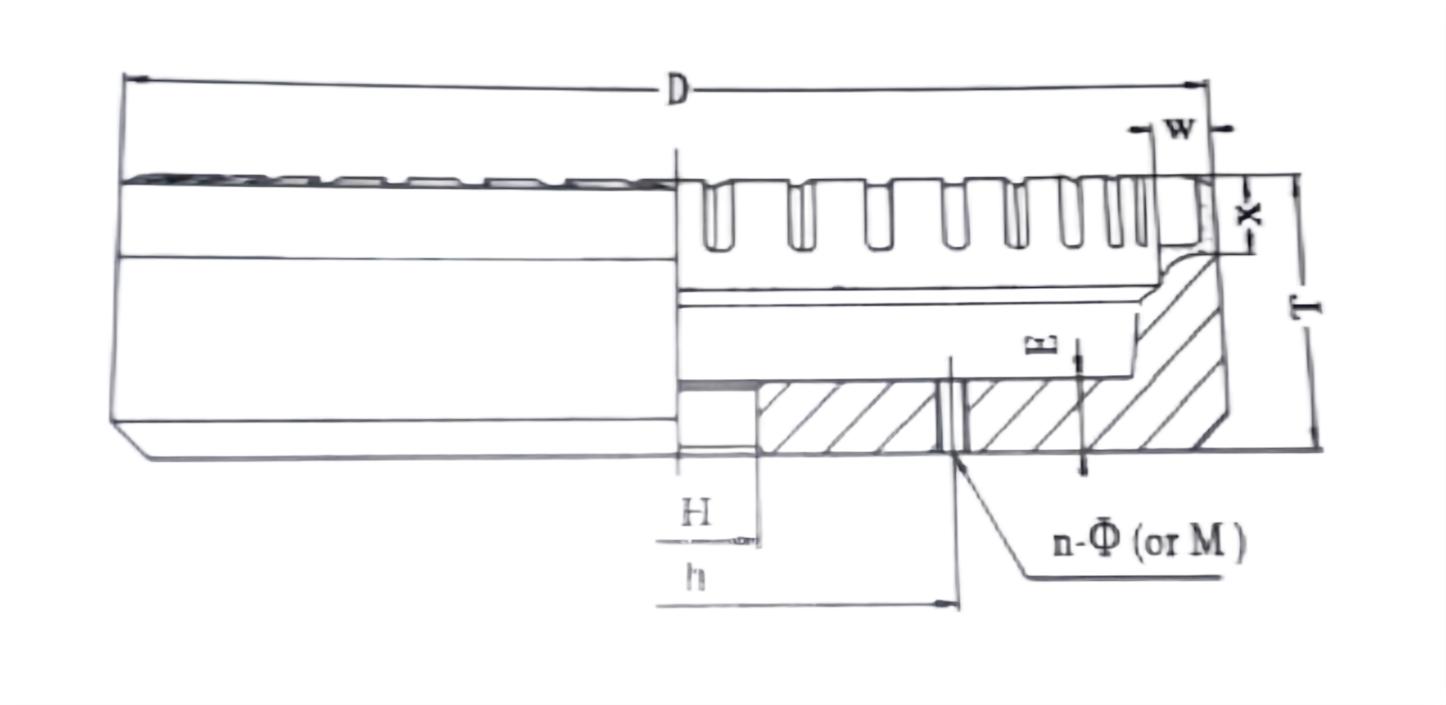

| Outer Diameter(mm) | Bore(mm) | Thickness(mm) | Rim width(mm) | Rim height(mm) | Grit(mm) |
| 150-175 | 12,22,50,70 | 38mm or customized | 10-15 | 8-10 | 150#,180# |
1. Diamond, as an abrasive, has high hardness and wear resistance, which enables the Half Segmented Diamond Wheel to maintain sharpness for a long time during the machining process and improve machining efficiency.
2. The half segmented design allows the grinding wheel to control the cutting amount more accurately during the machining process, ensuring machining accuracy and reducing material waste.
3. JINCHENG Half Segmented Diamond Wheel has high durability, which can reduce replacement frequency and improve production efficiency.
4. JINCHENG can also make products that meet your requirements according to the drawings you provide！
5. The regular standard size is available in JINCHENG stock, when you need them, we can send them to you within a couple of days.
Suit straight edge machine,beveling machine,bilateral machine,numerical control machine,such as Bavelloni,Bottero,Glassline,Schiatti,etc Jincheng full rim diamond grinding wheel usually used on the position NO.2 or NO.3 according to the machine type.Which is suitable for all kinds of glass in glass-industry.
Jincheng full segmented diamond grinding wheel is the first position on glass edging machine,which is used for building glass,furniture glass,and other similar glass sheets rough grinding. Suit for straight line/double edging machine,beveling machine and so on.

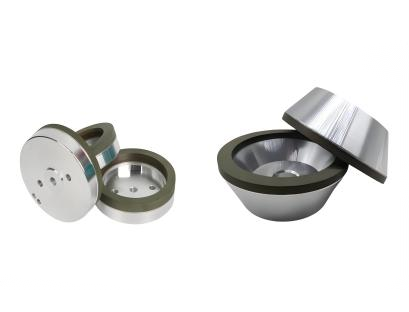

The diamond and resin is combined by vacuum sinter and hot-process to produce resin wheels of different sizes that are used on a beveling machines, straight line machines and double edging machines for second step fine processing of glass,quartzs,stones,chinawares etc.Jincheng can customize resin grinding wheels of different specifications for you.
If you need our products please write down any questions, we will reply as soon as possible.
