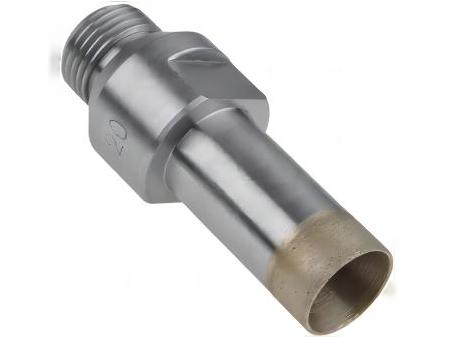

Also known as Diamond Hole Saw Core Drill Bit, it is a diamond tool made by JINCHENG using high-quality diamond and metal as a bonder. It is commonly used for drilling hard materials such as glass, ceramics, quartzs, stone etc.

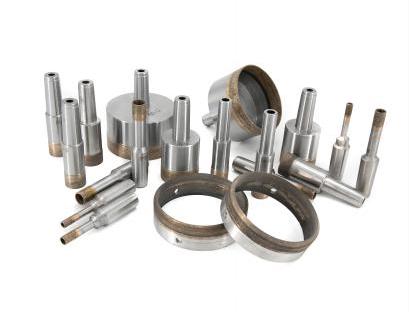

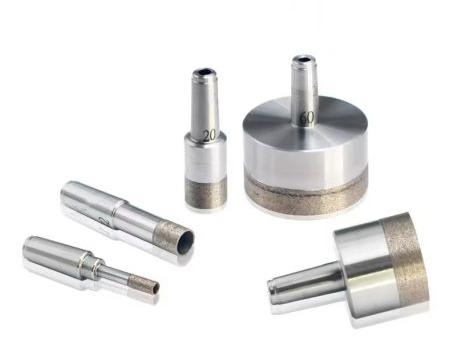

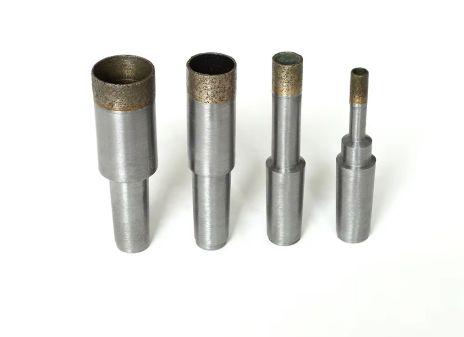

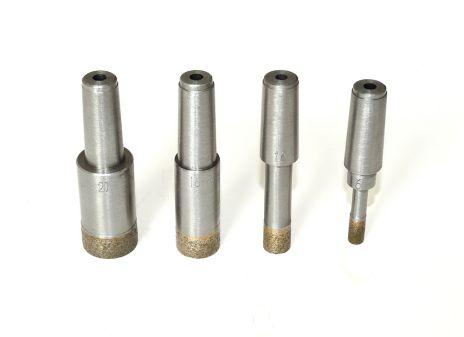

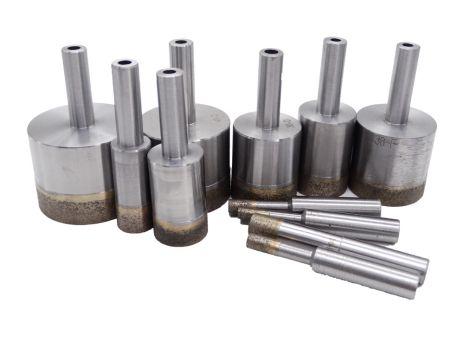

JINCHENG glass diamond drill bits are specialized tools designed for drilling precise holes in glass and other hard materials. These bits are coated or embedded with diamond particles, allowing them to cut through glass effectively while minimizing the risk of cracking or chipping.

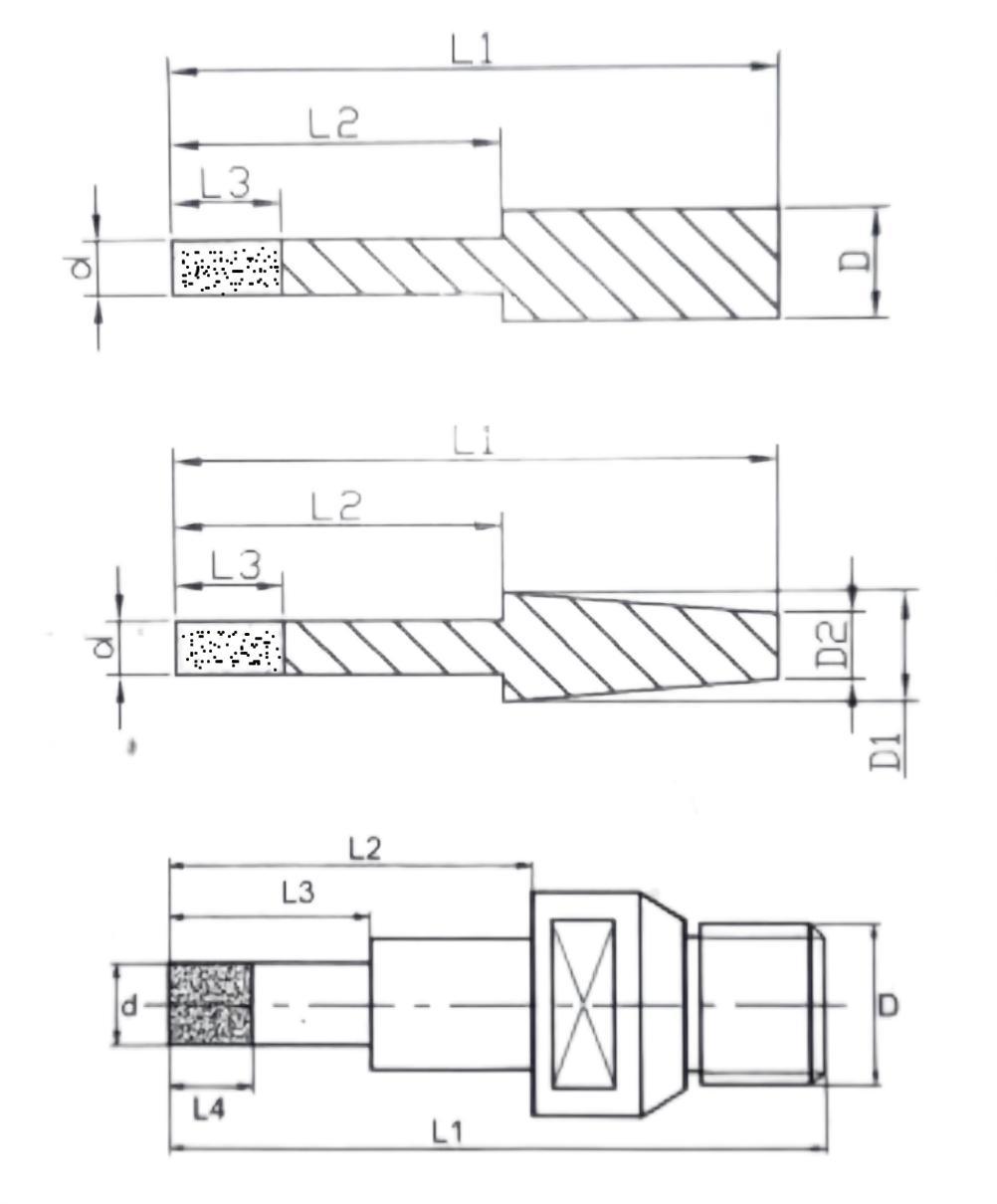

Reference drawings
| Shank type | Diameter(mm) | Wall thickness（mm） | Diamond section(mm) | Total Length(mm) |
| Straight | 5-100 | 1 | 10 | 55,65,75,95 |
| Taper | 5-100 | 1 | 10 | 55,65,75,95 |
| Threaded | 5-100 | 1 | 10 | 55,65,75,95 |
1. The drill bit is exquisitely designed with sharp cutting edges, ensuring the accuracy and consistency of drilling.
2. The high wear resistance of diamond abrasive allows the drill bit to extend its service life.
3. JINCHENG uses metal binders to enable diamond particles to transmit cutting forces more effectively, improving drilling speed and efficiency.
4. JINCHENG offers a wide range of sizes and specifications for customers to choose from, and can also customize production based on the drawings and parameters provided by customers.
5. The regular standard size is available in JINCHENG stock, when you need them, we can send them to you within a couple of days.

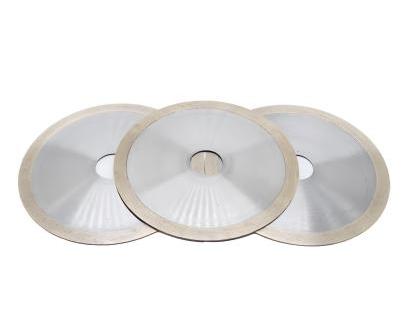

This is a saw blade shaped diamond tool produced by JINCHENG using metal bonder and vacuum high-temperature sintering and hot pressing. It is used for cutting various glass, ceramics, stone, and magnetic materials.JINCHENG can produce various specifications of products according to customer requirements.
Jincheng full segmented diamond grinding wheel is the first position on glass edging machine,which is used for building glass,furniture glass,and other similar glass sheets rough grinding. Suit for straight line/double edging machine,beveling machine and so on.
Suit straight edge machine,beveling machine,bilateral machine,numerical control machine,such as Bavelloni,Bottero,Glassline,Schiatti,etc Jincheng full rim diamond grinding wheel usually used on the position NO.2 or NO.3 according to the machine type.Which is suitable for all kinds of glass in glass-industry.
If you need our products please write down any questions, we will reply as soon as possible.
