Suit straight edge machine,beveling machine,bilateral machine,numerical control machine,such as Bavelloni,Bottero,Glassline,Schiatti,etc
JINCHENG full rim diamond grinding wheel usually used on the position NO.2 or NO.3 according to the machine type.

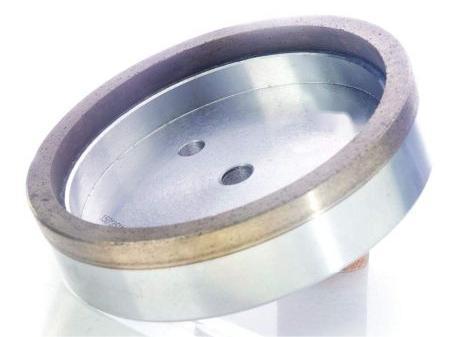

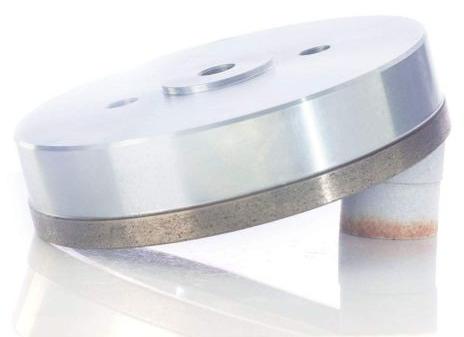

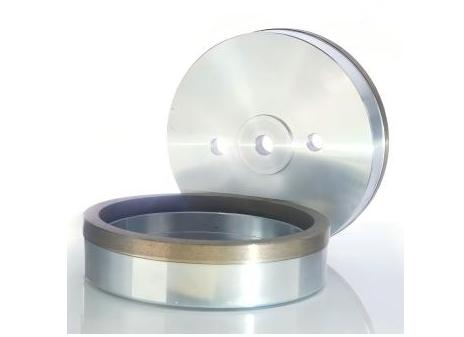

The Full Rim Diamond Grinding Glass Wheel is a grinding wheel that combines metal bonding agents and diamond abrasives.
The Full Rim Diamond Grinding Glass Wheel is widely used in the glass manufacturing industry, especially for the processing of high-precision and high-quality glass, such as LCD glass, touch screen glass, architectural glass, etc. Its excellent grinding performance can meet the strict requirements for glass surface smoothness and flatness in these fields.

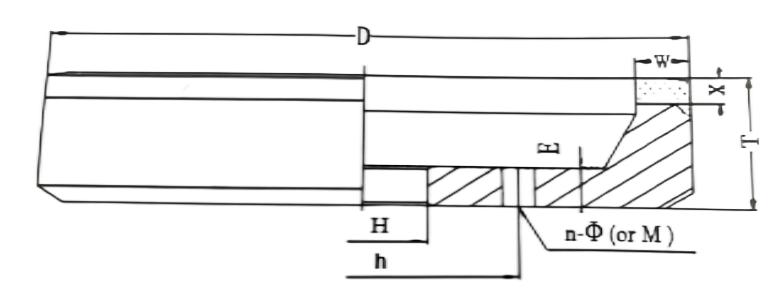

| Outer Diameter(mm) | Bore(mm) | Thickness(mm) | Rim width(mm) | Rim height(mm) | Grit(mm) |
| 150-175 | 12,22,50,70 | 38mm or customized | 10-15 | 8-10 | 120#,150#,180#,240# |
1. Full rim diamond grinding wheels have high sharpness, which helps improve grinding efficiency. And they can remain sharp after prolonged use, thereby reducing the frequency of replacement.
2. Full rim diamond grinding wheels provide high-precision grinding and can handle glass thicknesses ranging from 3mm to 25mm, making them suitable for various applications, including architectural and furniture glass.
3. Full rim diamond grinding wheels can be customized according to specific customer requirements, including size, granularity, to meet different processing needs.
4. The regular standard size is available in JINCHENG stock, when you need them, we can send them to you within a couple of days.
Jincheng full segmented diamond grinding wheel is the first position on glass edging machine,which is used for building glass,furniture glass,and other similar glass sheets rough grinding. Suit for straight line/double edging machine,beveling machine and so on.
These polishing wheels are used for last Position polishing on single edging machine,double edging machine,beveling machine,profile edging machine.
