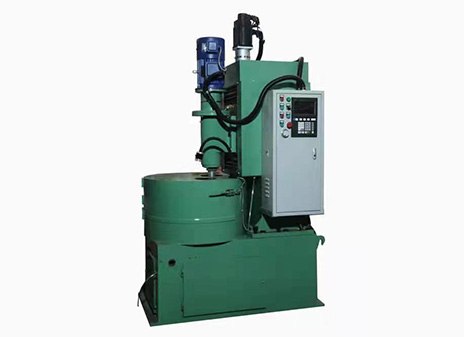

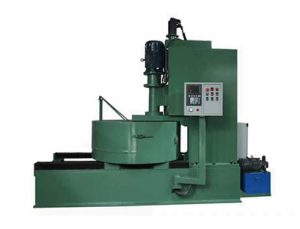

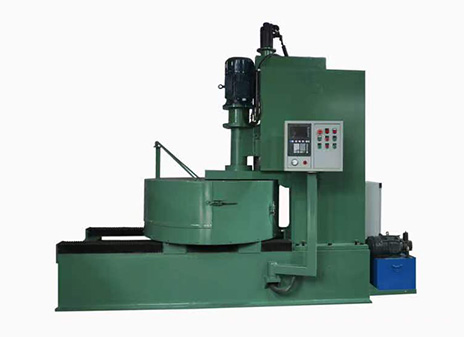

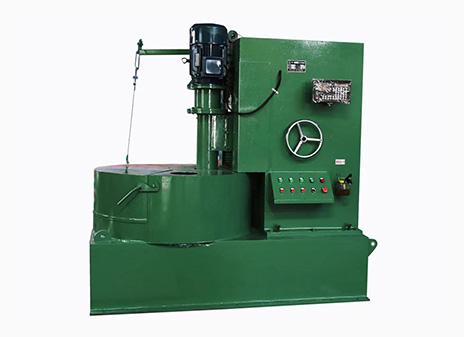

The surface diamond grinding machine is used to process the two end faces of grinding wheel with diameter less than or equal to 500 mm and thickness less than or equal to 150 mm.
The diamond surface grinding machine function:
1.The surface diamond grinding machine is used to process the two end faces of grinding wheel with diameter less than or equal to 500 mm and thickness less than or equal to 150 mm.
2.The lifting and lowering of the grinding head is powered by the servo motor, CNC system controls the grinding.
3.The parallelism of processing grinding wheel is less than or equal to 0.08mm.
4.Dry grinding is adopted, with perfect sealing and dust-proof structure, which is connected with the dust removal system.
1.JINCHENG can make grinding plans accroding to your grinding requirments.
2 The grinding machine can be used as longer as possible.
3 During client grinding process, jincheng grinding machine is safe and stable.
4.When clients choose JINCHENG, The grinding machine is Cost-effective.
| The maximum diameter of the ceramic grinding wheel | Φ500mm |
| The maximum thickness of the ceramic grinding wheel | 150 mm |
| The spindle speed Variable frequency adjustable | 1460 rpm |
| Inverter | 5.5Kw |
| Grinding speed | 16r/min |
| Inverter | 2.2kw |
| The radial runout of the grinding wheel | ≤0.03mm |
| The grinding plate runout tolerance | ≤0.04mm |
| The maximum stroke of the grinding head up and down | 210mm |
| reducer | wp080-b-60 |
| The power of grinding head motor | 4 poles and 4kw |
| The diameter of the diamond grinding wheel | Φ300 |
| CNC system | Huaxing wa-7d single axis CNC, English version. |
| Lifting servo motor | 130SJT-M10015DAZ-10N.m（2.3Kw） |
| The equipment weighs | 2100kg |
| Overall dimension | 1200*1400*2280 |
The surface diamond grinding machine is used to process the two end faces of grinding wheel with diameter less than or equal to 500 mm and thickness less than or equal to 150 mm.
If you need our products please write down any questions, we will reply as soon as possible.
