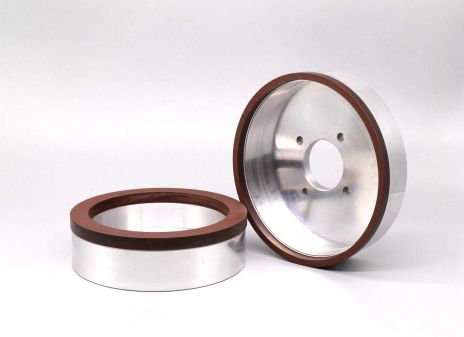

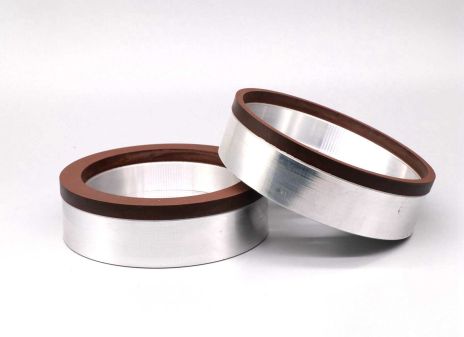

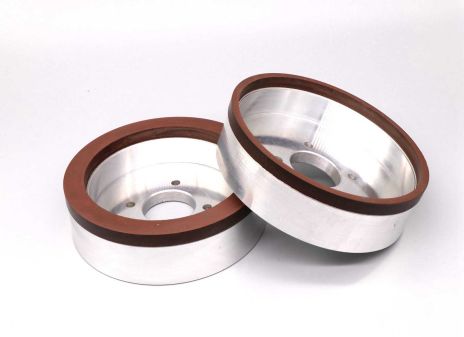

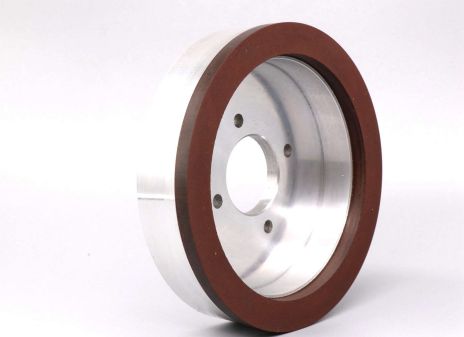

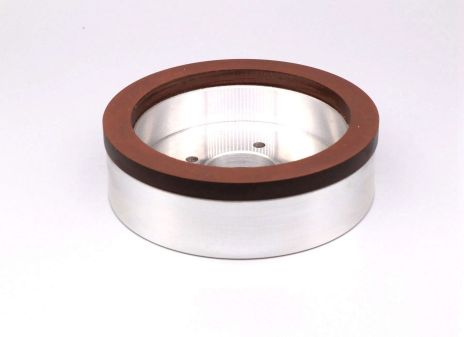

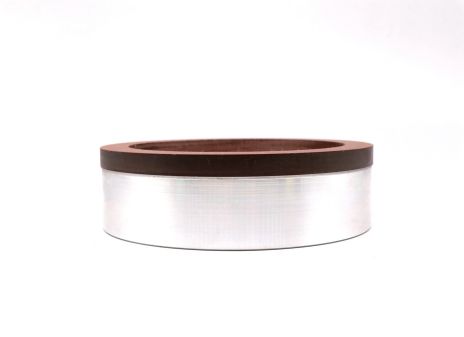

Jincheng 6A2 resin bond diamond grinding wheels are specifically designed for grinding glass and other hard materials. These wheels utilize a resin bond that provides a balance between cutting efficiency and surface finish quality.
6A2 Resin Bond Diamond Grinding Wheels are made using resin as the binder and diamond as the abrasive through a special process.
The 6A2 resin bond diamond grinding wheel can achieve fine grinding and polishing of glass, meeting the requirements of high-precision machining.It is particularly suitable for edge processing of complex shapes such as straight and curved edges of glass, ensuring smooth edges and no edge breakage.
These wheels are primarily used in industries where precision grinding of glass is required, such as in the manufacturing of optical components, glass products, and ceramics. Their design ensures effective material removal while maintaining the integrity of the workpiece surface.

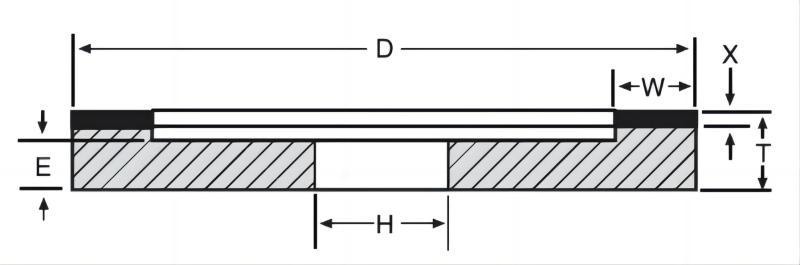

| D（mm） | T（mm） | H(mm) | W(mm) | X(mm) |
| 50 | 13、20、25 | 10 | 3、5、6 | 1.5、3、5 |
| 75 | 20、25 | 20 | 3、5、6、10 | 3、5 |
| 100 | 20、32、35、40 | 20 | 3、4、5、6、10、12 | 3、5、10 |
| 125 | 20、32、40 | 32、40 | 3、4、5、6、10、12、15、20 | 3、5、10 |
| 150 | 20、32、40 | 32、40 | 3、5、6、10、15、20、25 | 3、5、10 |
| 175 | 40 | 32、40 | 3、5、6、10、15、20、25 | 3、5、10 |
| 200 | 40 | 32、40 | 10、15、20、25 | 3、5、10 |
1. High hardness and wear resistance
Diamond abrasive has extremely high hardness and wear resistance, which can efficiently process various hard and brittle materials.
2. Good self sharpening
Resin binders can maintain good self sharpening during the grinding process, keeping the grinding wheel sharp and improving processing efficiency.
3. High machining accuracy
suitable for precision machining, ensuring the smoothness and precision of the machined surface.
4. JINCHENG can not only make according to client drawing size, but also according to client special grinding situation,in order to make sure that JINCHENG formulation is really suitable for end users.
5.The regular standard size is available in JINCHENG stock, when you need them, we can send them to you within a couple of days.
14A1 Resin Bond Diamond Grinding Wheels can be applied to the machining of materials such as hard alloys, precision ceramics, high-speed steel, mold steel, bearing steel, etc., including cylindrical grinding, flat grinding, and blade grinding.
1A1 resin bond diamond grinding wheel can be applied to various grinding processes such as outer and inner circles, flat surfaces, slotting, chamfering, etc., including hard alloys, diamond composite sheets, precision ceramics, mold steel, bearing steel, and other materials.
These polishing wheels are used for last Position polishing on single edging machine,double edging machine,beveling machine,profile edging machine.
If you need our products please write down any questions, we will reply as soon as possible.
