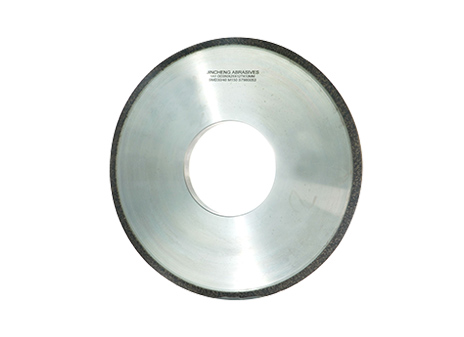

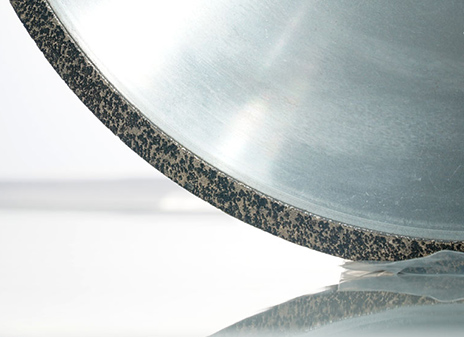

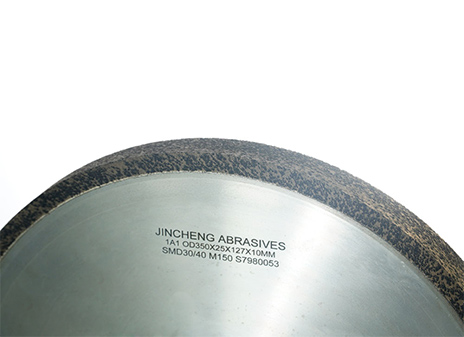

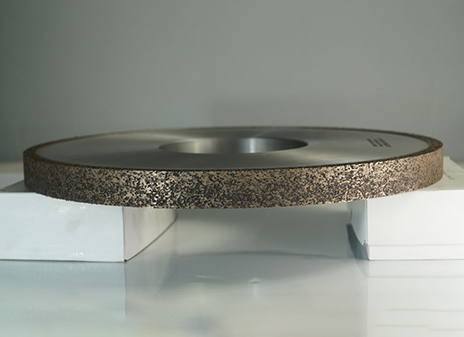

1A1 OD350MM Metal Bond Diamond Grinding Wheel is a type of grinding wheel that uses metal binders (such as bronze, nickel, etc.) to firmly bond diamond abrasive grains together. Its outer diameter reaches 350 millimeters, suitable for processing large or heavy hard and brittle materials such as ceramics, stone, glass, etc. This grinding wheel has a wide range of applications in the field of precision machining due to its high strength, high wear resistance, and good thermal conductivity.
This grinding wheel is widely used in the processing of hard and brittle materials such as ceramics, stone, and glass, and is particularly suitable for grinding, polishing, and chamfering large or heavy workpieces. In ceramic processing, it can be used for processing ceramic tiles, ceramic tubes, ceramic rods and other products.

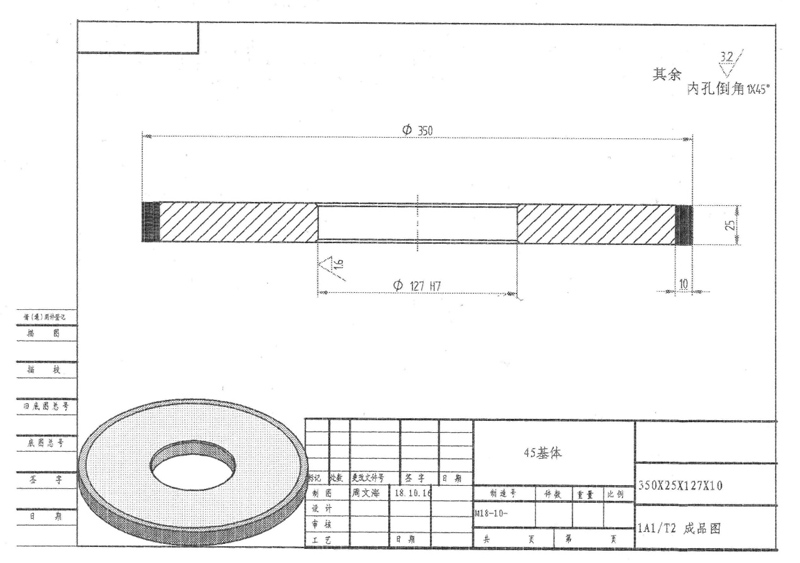

| OD | ID | DIAMOND THICKNESS | DIAMOND WIDTH | MESH SIZE |
| 350MM | 127MM | 15MM | 10MM | D851/D601/ |
1.High strength and wear resistance
Metal binders endow grinding wheels with extremely high strength and hardness, ensuring stable shape and performance during high-speed rotation and heavy load grinding processes, and extending their service life.
2.Efficient grinding
Diamond abrasive particles have extremely high hardness and sharpness, which can easily cut hard and brittle materials such as ceramics, improving grinding efficiency.
3.Good thermal conductivity
The metal bonding agent effectively conducts the heat generated during the grinding process, reduces the grinding temperature, and minimizes the risk of thermal deformation and burns of the workpiece.
4. Customized production
According to customer needs, grinding wheels with different particle sizes, thicknesses, and other specifications can be customized to meet different processing requirements.
Metal bond diamond grinding wheels play an important role in precision machining of ceramic materials due to their high strength, high wear resistance, and good thermal conductivity.
