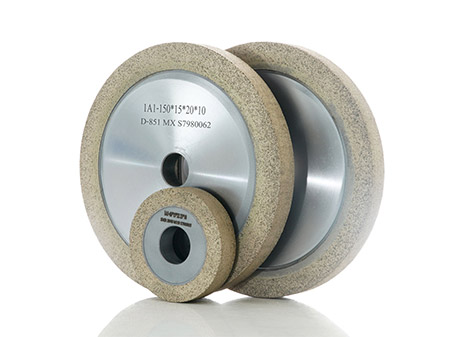

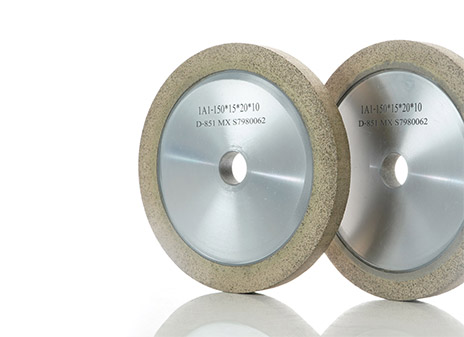

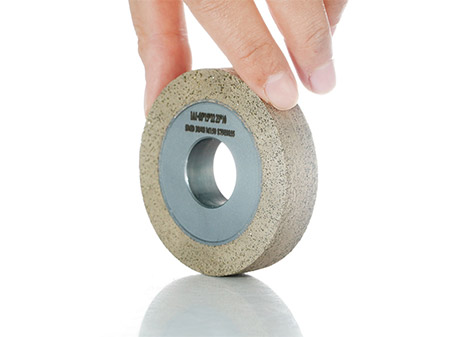

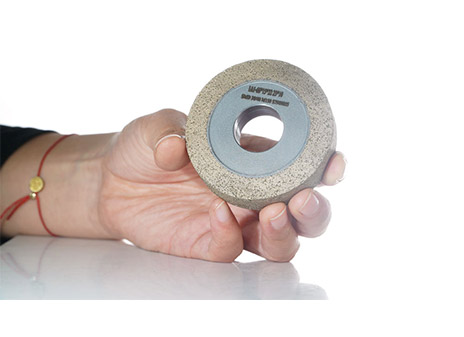

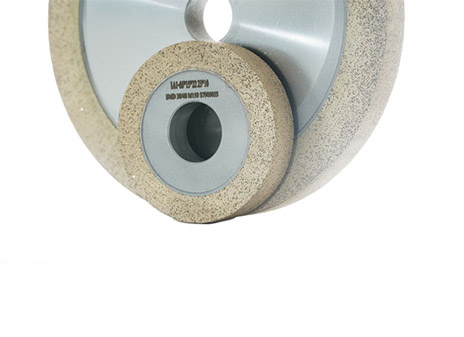

This is metal bond diamond grinding wheel used for ceramic grinding.Metal bond diamond grinding wheels play an important role in precision machining of ceramic materials due to their high strength, high wear resistance, and good thermal conductivity.
Metal bonded diamond grinding wheels are widely used in the processing of hard and brittle materials such as ceramics, stone, glass, and hard alloys. In ceramic processing, it is mainly used for processes such as grinding, polishing, and chamfering of ceramic tiles, ceramic tubes, ceramic rods, and other products.

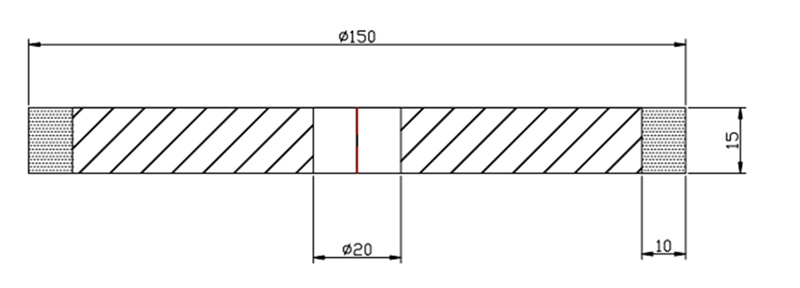

| OD | ID | DIAMOND THICKNESS | DIAMOND WIDTH | MESH SIZE |
| 200MM | 20MM | 15MM | 10MM | D851/D601/ |
| 150MM | 20MM | 15MM | 10MM | D851/D601/ |
| 120MM | 20MM | 15MM | 10MM | D851/D601/ |
| 100MM | 20MM | 15MM | 10MM | D851/D601/ |
1. High strength and wear resistance
The metal bonding agent endows the grinding wheel with extremely high strength and hardness, enabling it to maintain stable shape and performance during high-speed rotation and heavy load grinding processes, thereby extending the service life of the grinding wheel.
2. Efficient grinding
Diamond abrasive particles have extremely high hardness and sharpness, making it easy to cut various hard and brittle materials and improve grinding efficiency.
3. Good thermal conductivity
The metal bonding agent effectively conducts the heat generated during the grinding process, reduces the grinding temperature, and minimizes the risk of thermal deformation and burns of the workpiece.
4. Precision control
The grinding wheel undergoes precision machining to ensure accuracy and stability during the grinding process, making it suitable for applications that require high machining accuracy.
5.JINCHENG can not only make according to client drawing size, but also according to client special grinding situation,such as the hardness and shape of the ceramic grinding wheel required by the end user.Then clients will make sure that JINCHENG formulation is really suitable for end users.
1A1 OD350MM Metal Bond Diamond Grinding Wheel is a type of grinding wheel that uses metal binders (such as bronze, nickel, etc.) to firmly bond diamond abrasive grains together.
The 6A2 Metal Bond Diamond Grinding Wheel is a tool designed specifically for high-precision grinding and machining, widely used in various fields such as metal processing, tool manufacturing, aerospace, and more.
Metal Bond Diamond Grinding Pins are a type of diamond tool with excellent grinding performance and durability, widely used in precision and ultra precision machining of various hard and brittle materials.
If you need our products please write down any questions, we will reply as soon as possible.
