This type of Jincheng grinding wheel can be applied to the machining of materials such as hard alloys, precision ceramics, high-speed steel, mold steel, bearing steel, etc., including cylindrical grinding, flat grinding, and blade grinding.

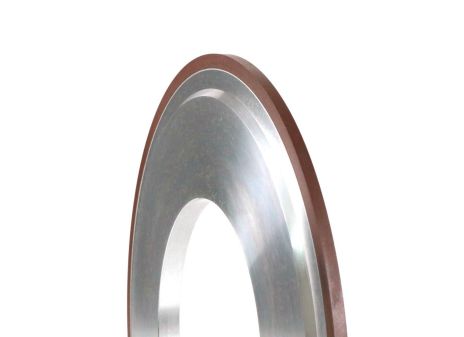

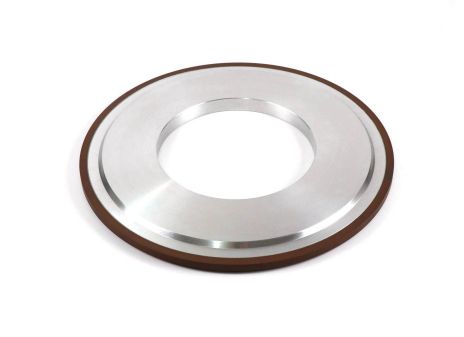

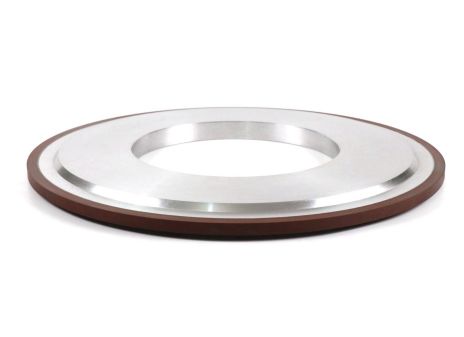

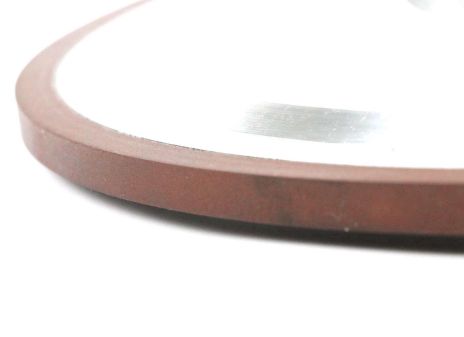

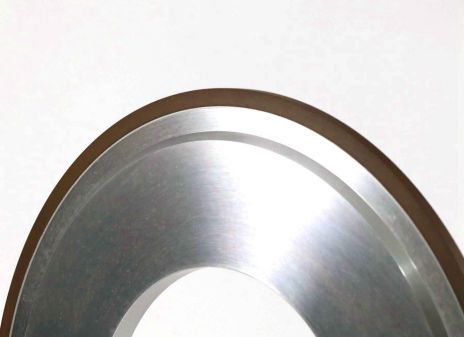

14A1 Resin Bond Diamond Grinding Wheels is a type of diamond grinding wheel that uses resin as a bonding agent and has unique properties and application areas.Its application areas are as follows.
1. Hard material processing
grinding, cutting, and polishing of materials such as ceramics, glass, stone, and hard alloys.
2. Tool sharpening
Used for sharpening and sharpening various cutting tools such as milling cutters, drills, saw blades, etc.
3. Precision machining
Used in the fields of precision machinery, electronics, optics, etc., for machining high-precision parts and surfaces.

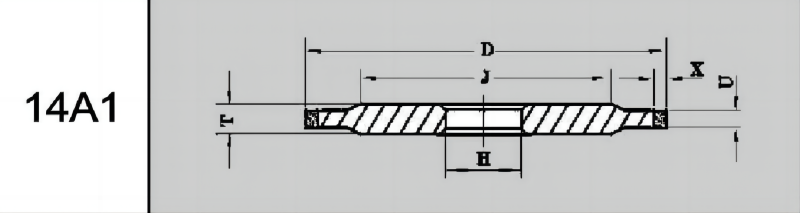

Unit:mm
| D | T | H | X | U |
| 100 | 10-20 | 20 | 5、10 | 5-10 |
| 125 | 10-20 | 20、32 | 5、10 | 5-10 |
| 150 | 10-20 | 32 | 5、10 | 5-10 |
| 175 | 10-20 | 32 | 5、10 | 5-10 |
| 200 | 10-20 | 32、75 | 5、10 | 5-10 |
| 250 | 20-30 | 75 | 5、10 | 5-15 |
| 300 | 20-40 | 75、127 | 5、10 | 5-15 |
| 350 | 20-40 | 127 | 5、10 | 5-15 |
| 400 | 20-50 | 127、203 | 5、10 | 5-20 |
1. High hardness and wear resistance
Diamond, as an abrasive, has extremely high hardness and wear resistance, and can efficiently process various hard materials.
2. Resin bonding agent
Resin bonding agent endows the grinding wheel with good self sharpening and toughness, enabling it to maintain sharp cutting edges during the machining process, while also having good impact resistance.
3. High precision
The 14A1 model grinding wheel usually has high machining accuracy, which can meet the needs of precision machining.
4. Multiple shapes and specifications
Different shapes (such as flat, bowl, cup, etc.) and specifications of grinding wheels can be customized according to customer needs.
5. JINCHENG can not only make according to client drawing size, but also according to client special grinding situation,such as the hardness and shape of the ceramic grinding wheel required by the end user.Then clients will make sure that JINCHENG formulation is really suitable for end users.
6. The regular standard size is available in JINCHENG stock, when you need them, we can send them to you within a couple of days.
